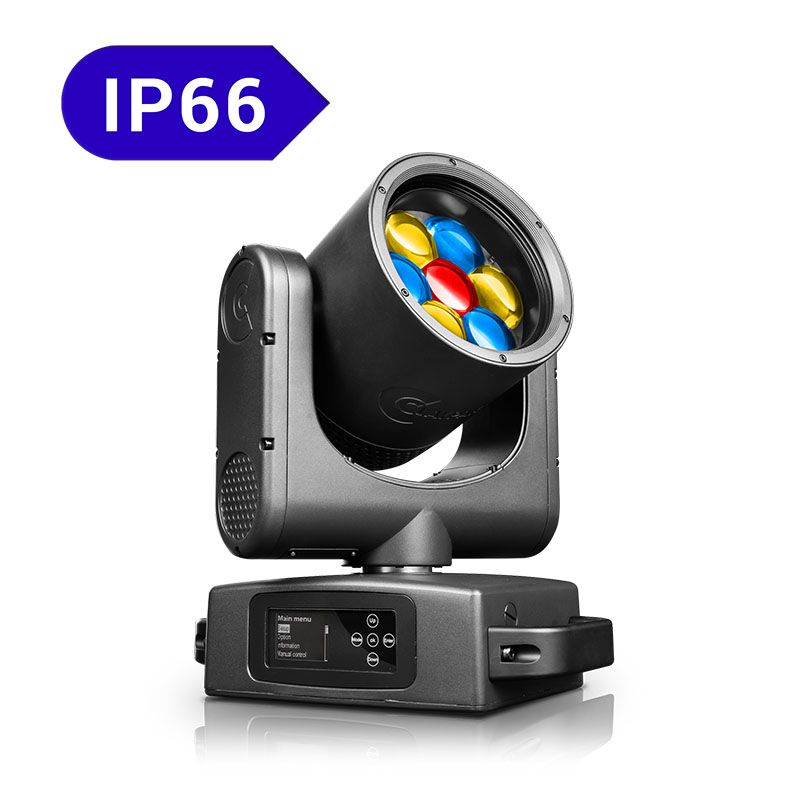

Mini-B Aqua PX

Mini-B Aqua PX, the newest member of the Mini-B family, makes a splash across the board with its unbeatable mix of flexibility, lightweight design and lightning-fast pantilt movements, not to mention the exceptional costperformance ratio it offers. Mini-B Aqua PX inherits the core strengths of its predecessors, adding the pixel-topixel control of each LED.

Uncompromising performance
At the heart of Mini-B Aqua PX lies an engine featuring seven powerful 40W RGBW LEDs, coupled with a proprietary Claypaky optical unit featuring a collimator and seven surface lenses, for highly efficient light output with minimal power consumption. Plus, you can control each single LED separately for striking frontal visual effects and more lighting creativity.

Enhanced versatility
Mini-B Aqua PX seamlessly integrates with existing setups, complementing other fixtures in the Mini-B series. It offers 50 pre-installed color macros, linear electronic color temperature correction from 2500K to 8000K, smooth transitions between colors, and a wide zoom range of 4° to 55° for versatile applications.

Weatherproof and build to endure
This newcomer in the Shield family boasts an IP66 protection rating, allowing for worry-free operations in the most challenging environments while also excelling in indoor installations. Its fully sealed dust-proof design cuts down on upkeep compared to standard IP20 fixtures.

Perfect choice for every stage
Mini-B Aqua PX is a powerful, versatile, and weather-resistant washlight suitable for diverse applications.
Whether for indoor productions (theaters, TV studios, event venues) or outdoor events (concerts, festivals, stage productions), it offers exceptional performance. Its compact, lightweight design enables high-speed pan & tilt movements, ideal for dynamic effects. The weather-resistant, versatile miniwashlight integrates smoothly into indoor and outdoor stages, making it an exceptional addition to any lighting professional’s toolkit.

Mini-B Aqua PX - more than a washlight, it’s the cherry on top, a showstopper, leaving an indelible mark on your lighting masterpieces.

Weitere Infos zum Mini-B Aqua

Besondere Eigenschaften:
• Light source: 7 x 40W RGBW LEDs (7000K)
• Weather Resistant (IP66), ideal for indoor and outdoor applications
• Extremely compact and lightweight
• Highly efficient light output (3,420 lm)
• Very low power consumption (<350W)
• Pixel mapping
• Very precise and high-speed pan and tilt movements
• Motorized 4° to 55° zoom range
• 5-curve, 24-bit digital dimmer with output color balance
• Pre-installed color macros
• 2500K-8000K linear CTO
• Crossfade channels between color and CTO, and between macros
• Electronic strobe @ 25 f/sec
• 4 Operating modes: Constant – Auto – Silent – Theatre
• Control signal: USITT DMX 512
• Protocols: RDM, WebServer, Art-Net and sACN
• CloudIO Ready: fully compatible with CloudIO
• Operating voltage: 100-240V, 50/60 Hz
• Weight: 12.7 kg (28 lbs)
• Size (LxWxH): 280x195x435 mm










2x Omega-Clamps

PowerCon Kabel ohne Netzstecker
